Main Features:

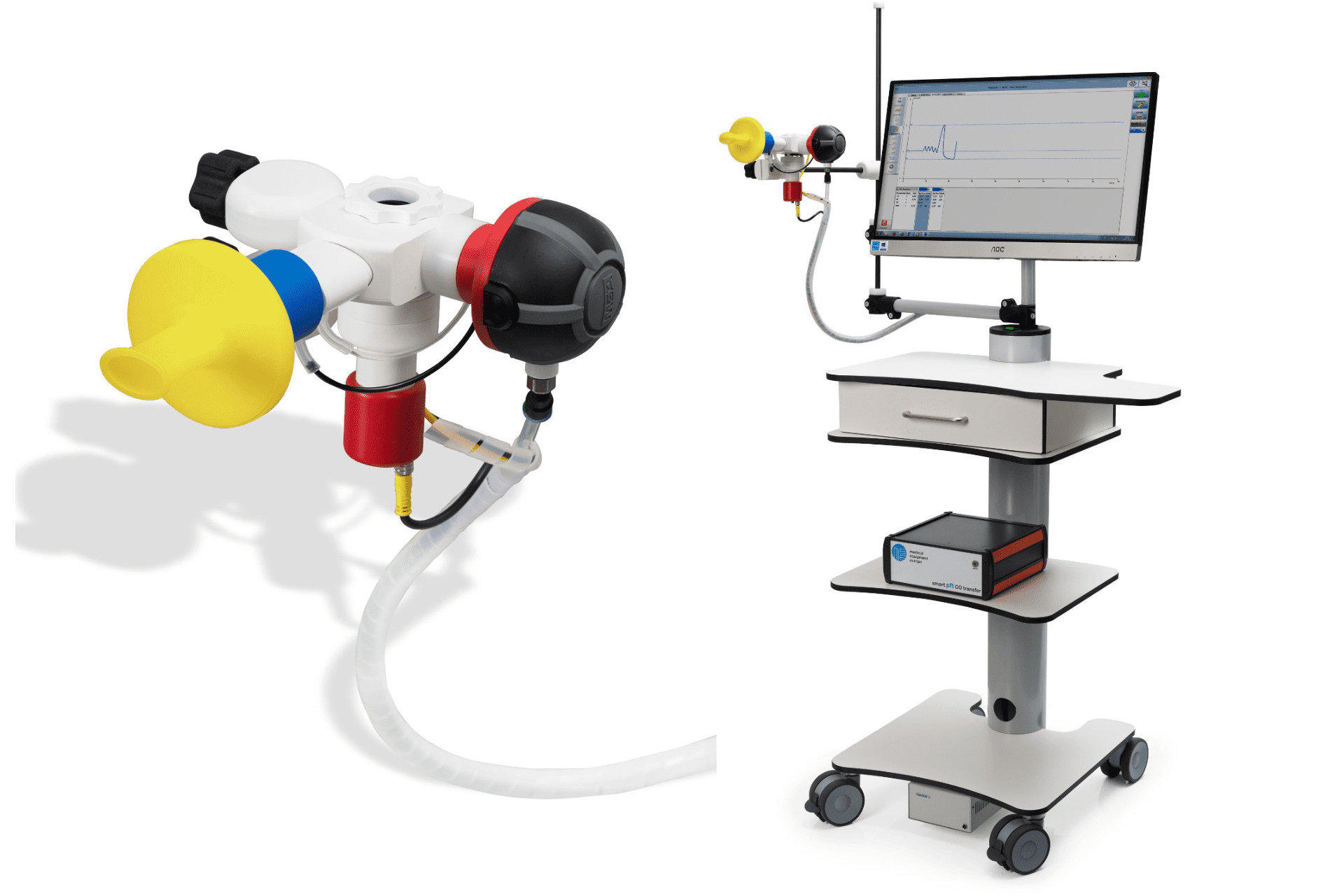

- Single breath CO Diffusion System
- CO transfer capacity test fast, linear, and reproducible.
- This device is designed for quick screening of CO-Diffusion capacity.
- Advanced and long-term tested software algorithms help calculate measurements with very small vital capacity starting from approximately 0.7 litres.
- The system registers and displays real-time all-important data like gas concentrations, volume and mouth pressure.
- The test runs fully automatic without any technician intervention for gas release and gives online all necessary advice for the correct breathing manoeuvres.
- Selective and fast infrared gas analyzer measuring transfer and inert gas (CO & CH4)
- Particular and precise gas supply by a demand valve
- Input mask for Hb and COHb values and correlating recalculation of test result.
- Automatic altitude corrections by built in ambient pressure sensor.
- Online display of mouth pressure during breath holding.
- Gas analyzer works without absorber products like expensive naphion sampling line which reduce recurrent maintenance cost.
- Upgradable to Bronchial challenge studies, Respiratory Drive Mechanics Studies, and Body plethysmography Systems.
- Standard Parameters: TLco, Kco, TLC, RV, FRC, VA , t diff, Hb, VIN (ch4)
Available measurement optional:
- Respiratory drive (P0.1/MIP/MEP)
- Airway resistance (ROCC)
- Rhinomanometry
- Compliance
- Challenge testing
- Body box Plethysmography ( upgradable)
